SINGLE ENDED Output Transformers (SE)




Power Primary Secondary Tubes Max Inductance @50Hz mA Dimensions Price per piece
USD

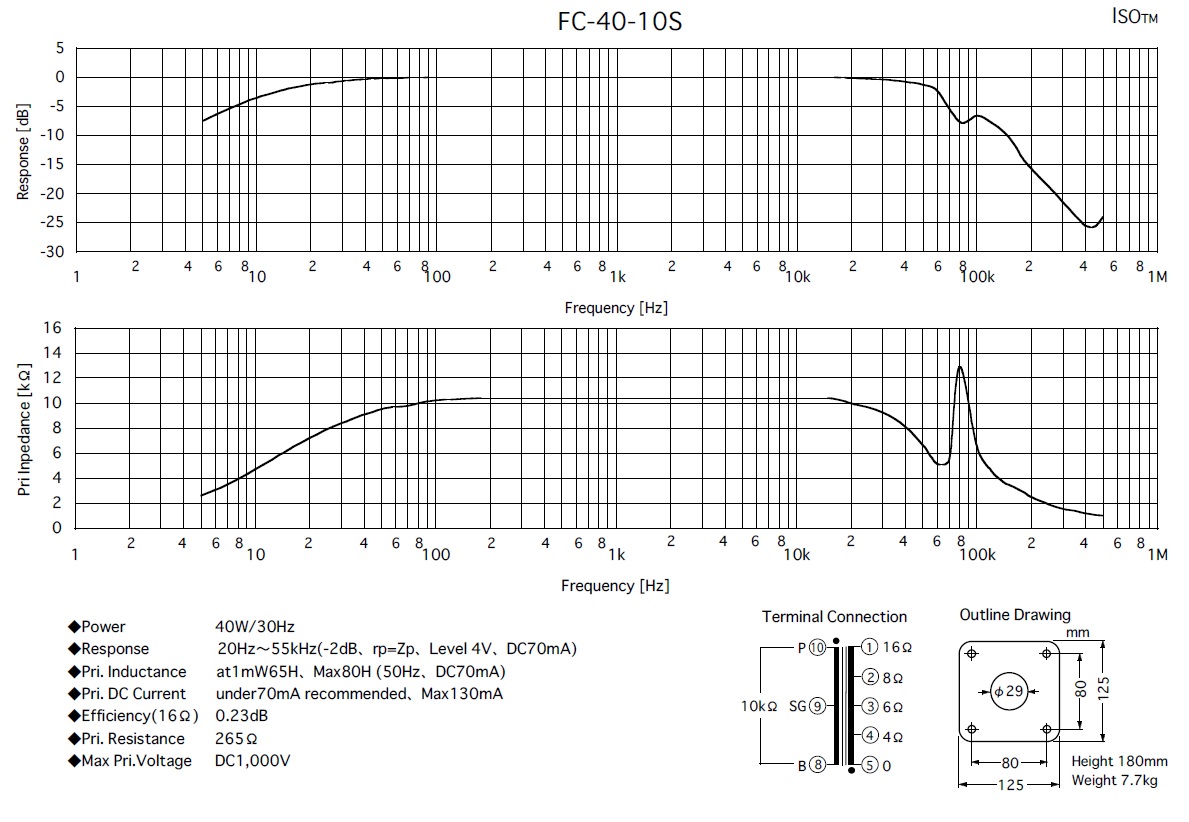

FC-40-10S 40W 10k 4, 6, 8, 16 211, 845 80H 70 design
130 peak
125 x 125 x 180 $730

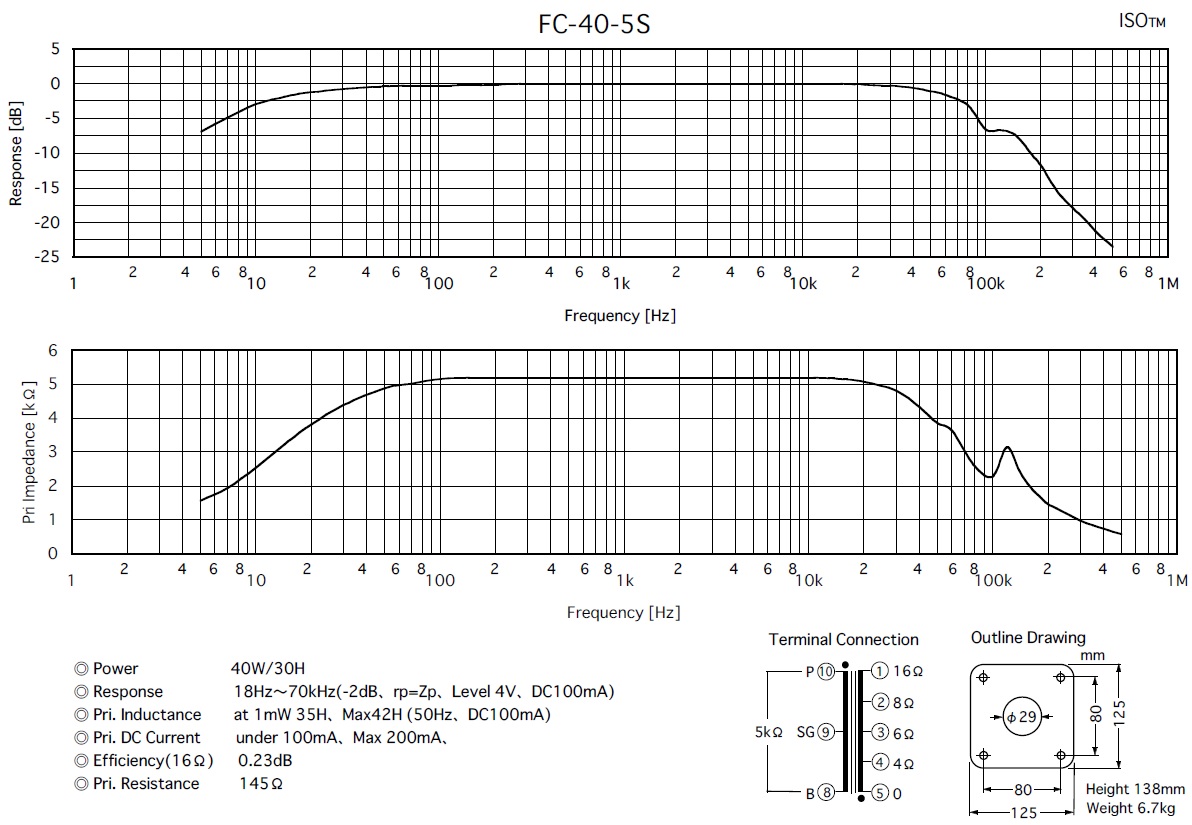

FC-40-5S 40W 5k 4, 6, 8, 16 DA30, 50, 845 30H 100 design
200 peak
125 x 125 x 180 $665

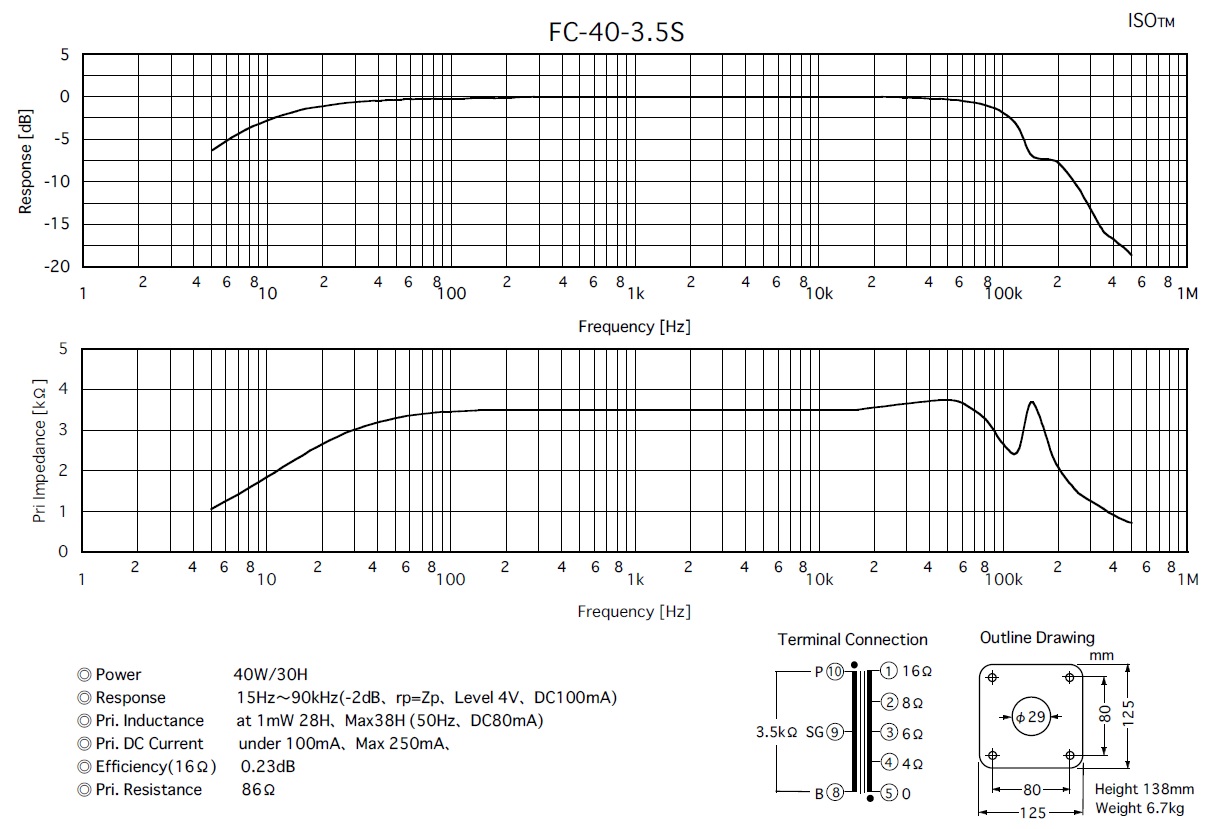

FC-40-3.5S 40W 3k5 4, 6, 8, 16 300B, PX25 38H 100 design
250 peak
125 x 125 x 180 $665

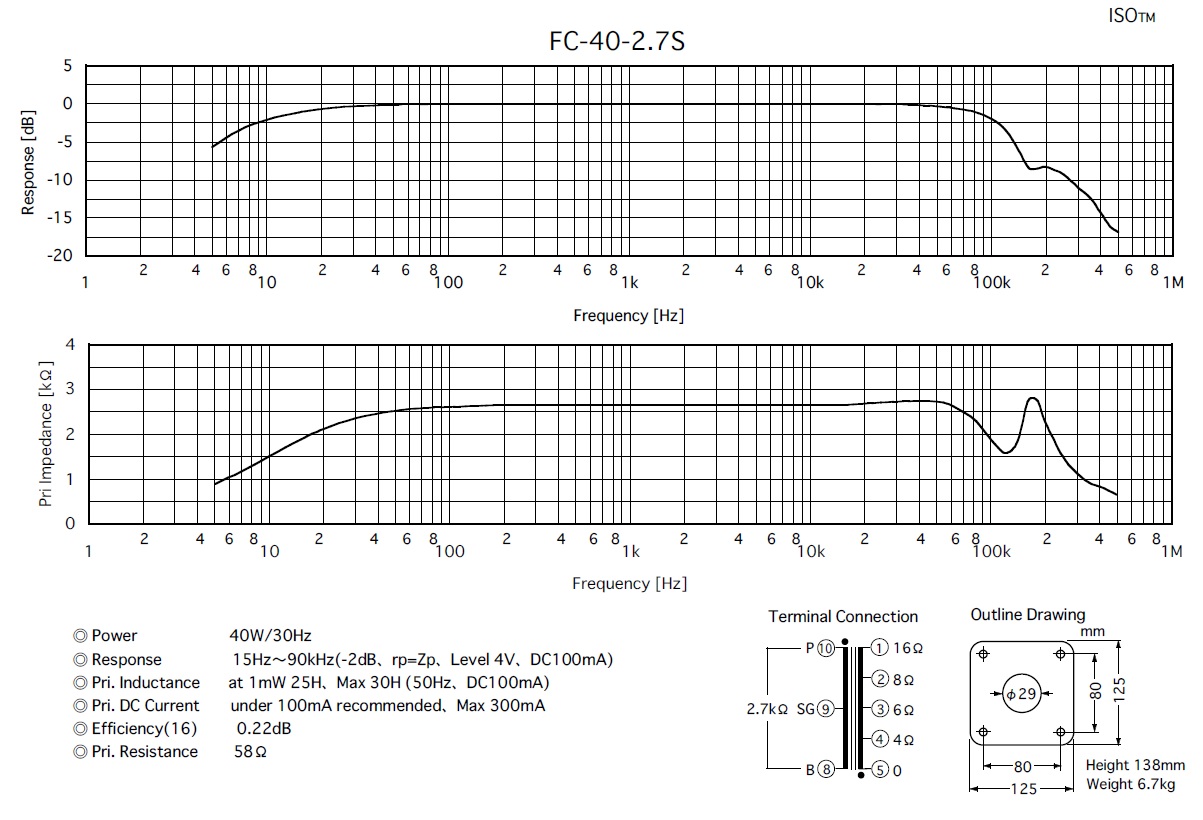

FC-40-2.7S 40W 2k7 4, 6, 8, 16 300B 30H 100 design
300 peak
125 x 125 x 180 $665

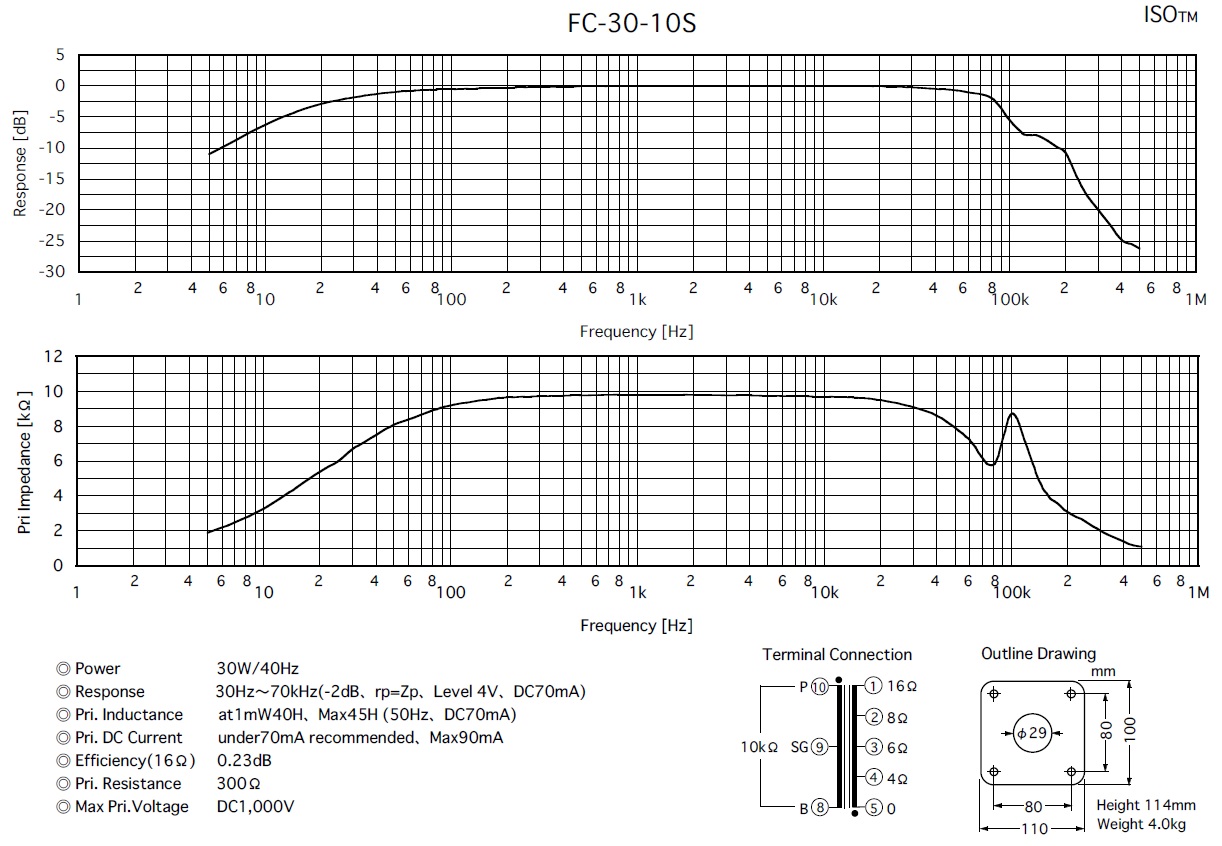

FC-30-10S 30W 10k 4, 6, 8, 16 211, 845 45H 70 design
90 peak
110 x 110 x 114 $424

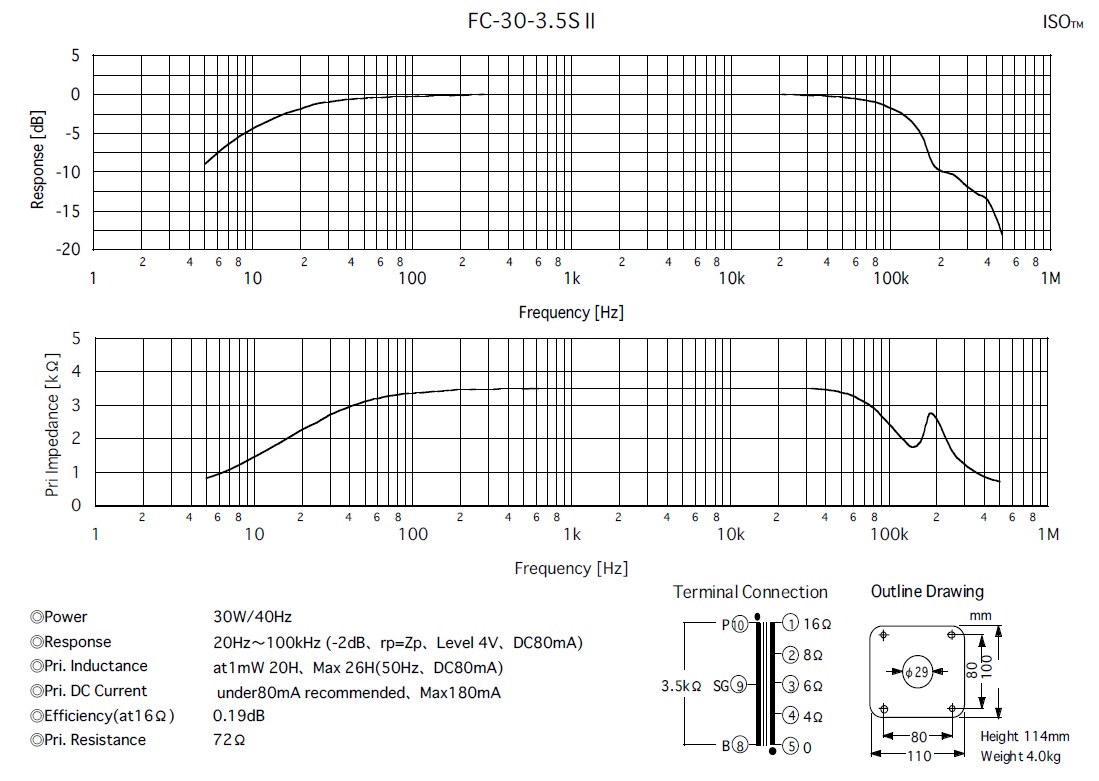

FC-30-3.5S II 30W 3k5 4, 6, 8, 16 300B, PX25 26H 80 design
180 peak
110 x 110 x 114 $424

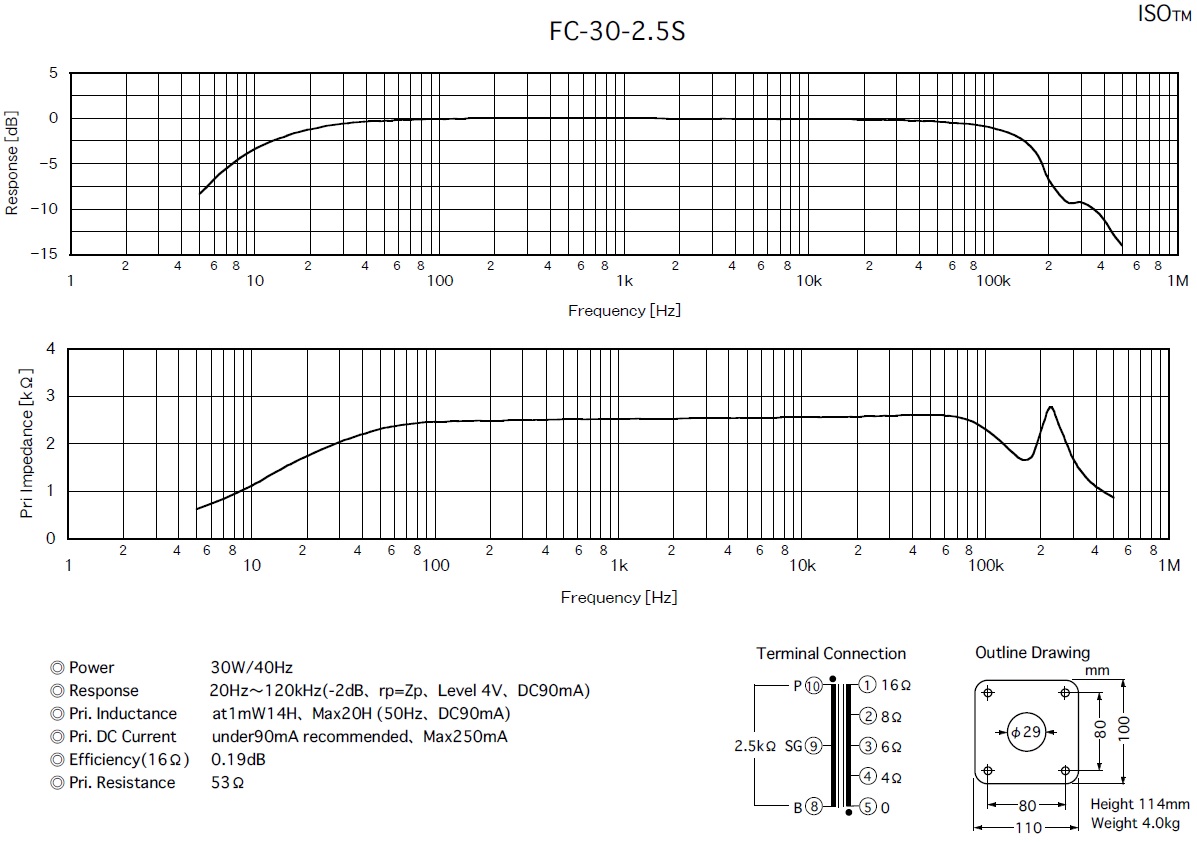

FC-30-2.5S 30W 2k5 4, 6, 8, 16 AD1, Ed, 2A3 20H 90 design
250 peak
110 x 110 x 114 $424
FC-20-14S 20W 14k 4, 6, 8, 16 VT-25 90H 85 x 80 x 105 $276
Multi-Impedance Power Primary Secondary Tubes mA Dimensions

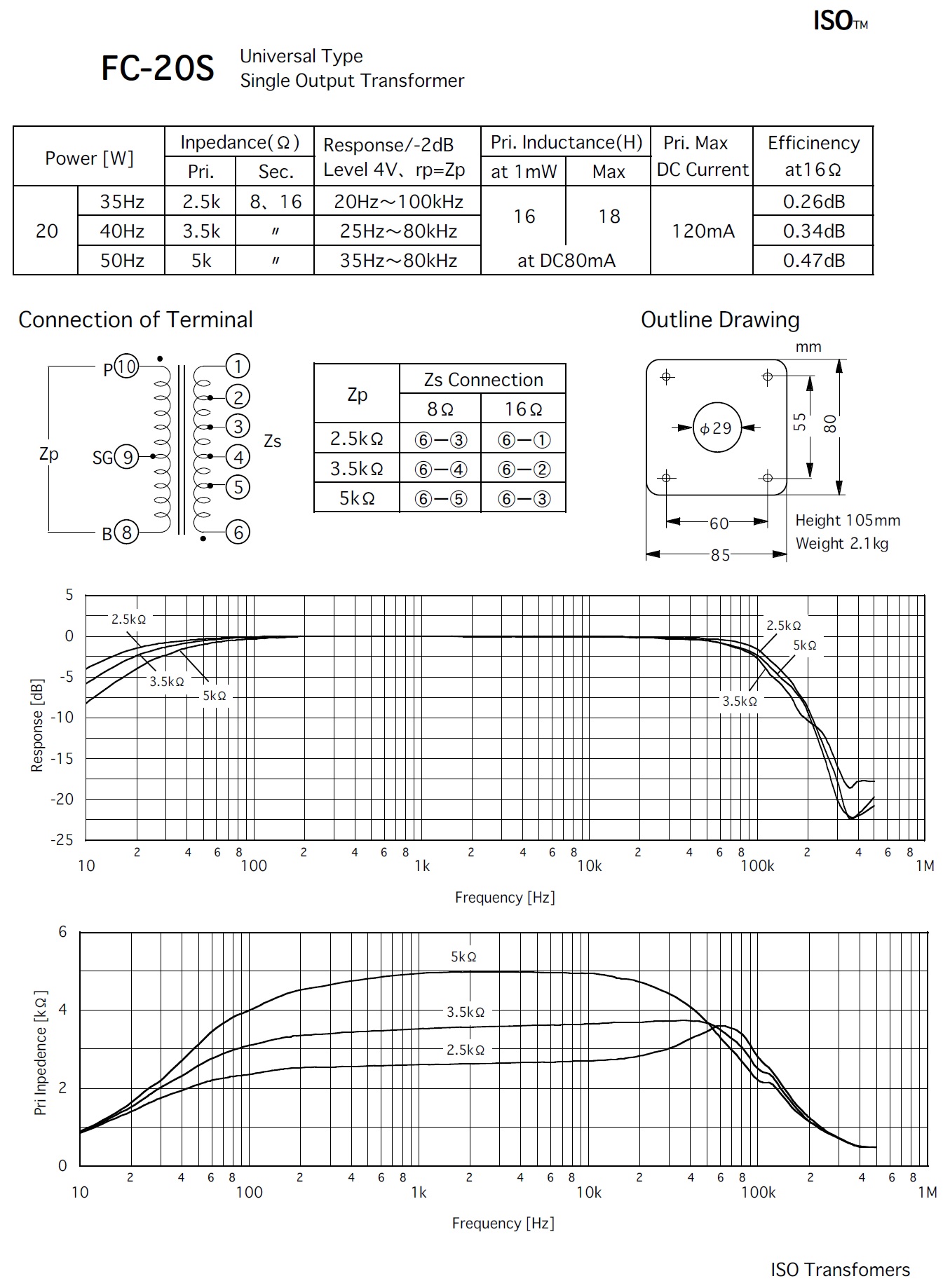

FC-20S 20W 2k5
3k5
5k
8, 16 300B, 50, VT-52, 2A3, KT66, 6550 80 design
140 peak
85 x 80 x 105 $276

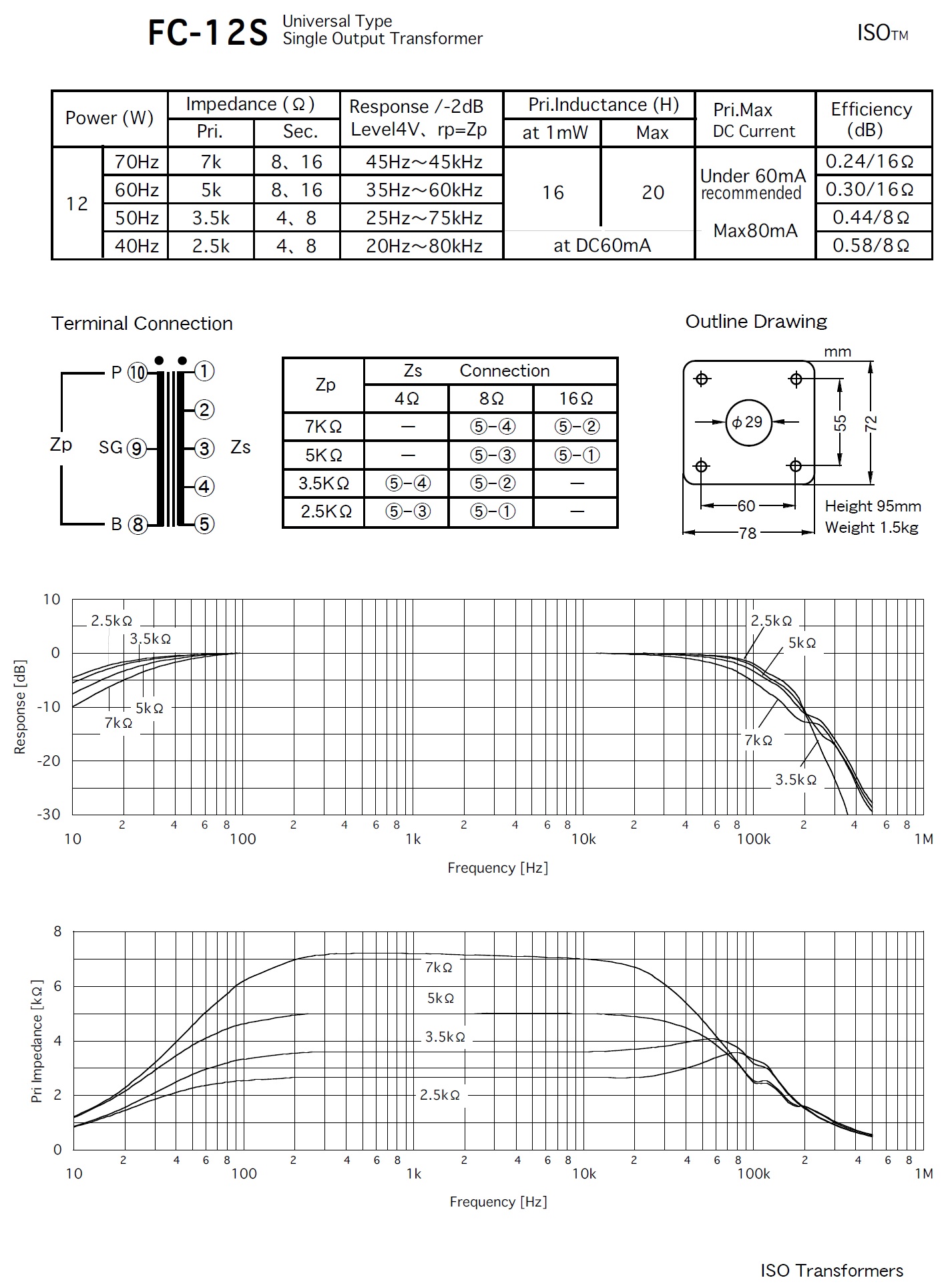

FC-12S 12W 7k
5k
8, 16 45, 71A 60 design
80 peak
78 x 72 x 95 $208
12W 3k5
2k5
4, 8 6V6,
EL84
6L6
EL34
