INTERSTAGE Transformers (IT)
| Primary Impedance | Ratio | Freq Resp -2dB, 4V, rp=Zp |
Primary Inductance | Max DC Current (mA) | Max Output Voltage | Rp driver tube | Weight | Price per piece USD |
|
| Interstage Transformer | |||||||||
| NC-20F II | 5k rp=1~10k |
1:1 | 15Hz - 100kHz Rp=5k, Ib=25mA |
75H Ib=25mA |
50 | 160Vrmx 10Hz |
1~10K | 2kg | $448 |
| Input Transformer | |||||||||

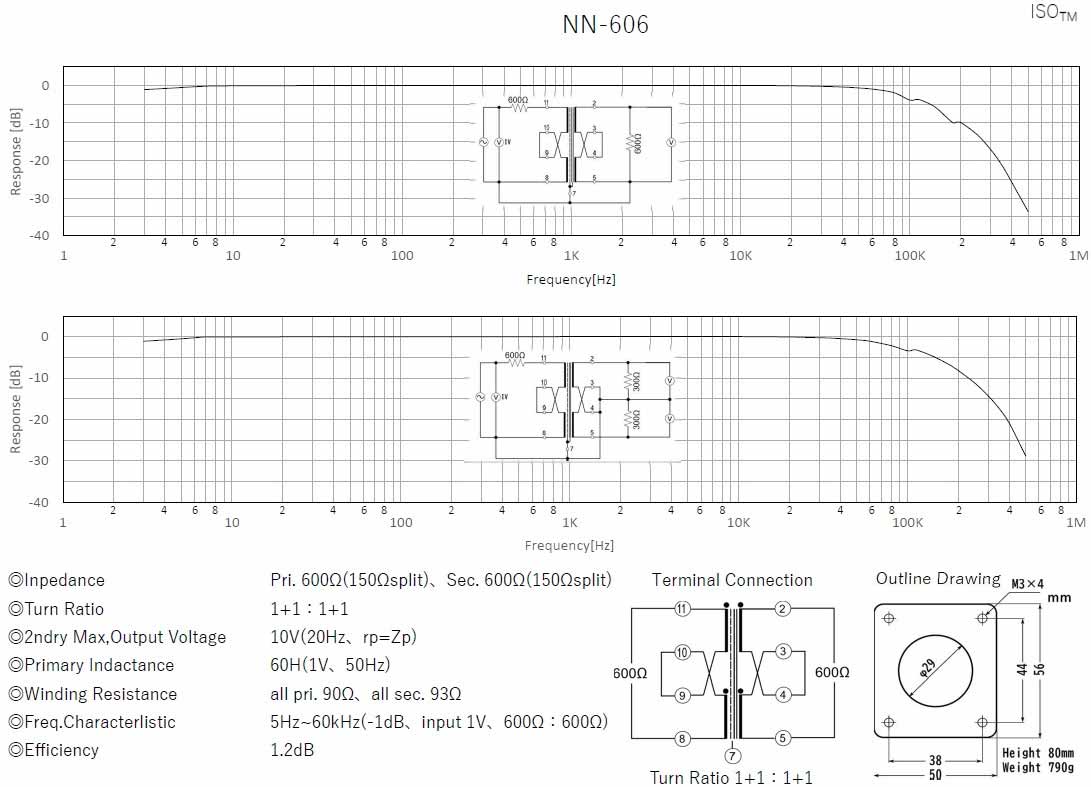

| NN-606 | 600 (150 splilt) | 1+1:1+1 | 5Hz-60kHz (-1dB, Input 1V, 600:600 | 60H (1V, 50Hz) |
50 | 10V (20Hz, rp=Zp) | 790g | $249 | |
