PUSH-PULL Output Transformers (PP)
| Power | Primary | Secondary | Tubes | Henry | Max Offset (mA) | Freq Reps @-1dB | Dimensions L x W x H Weight |
Price per piece USD |
|

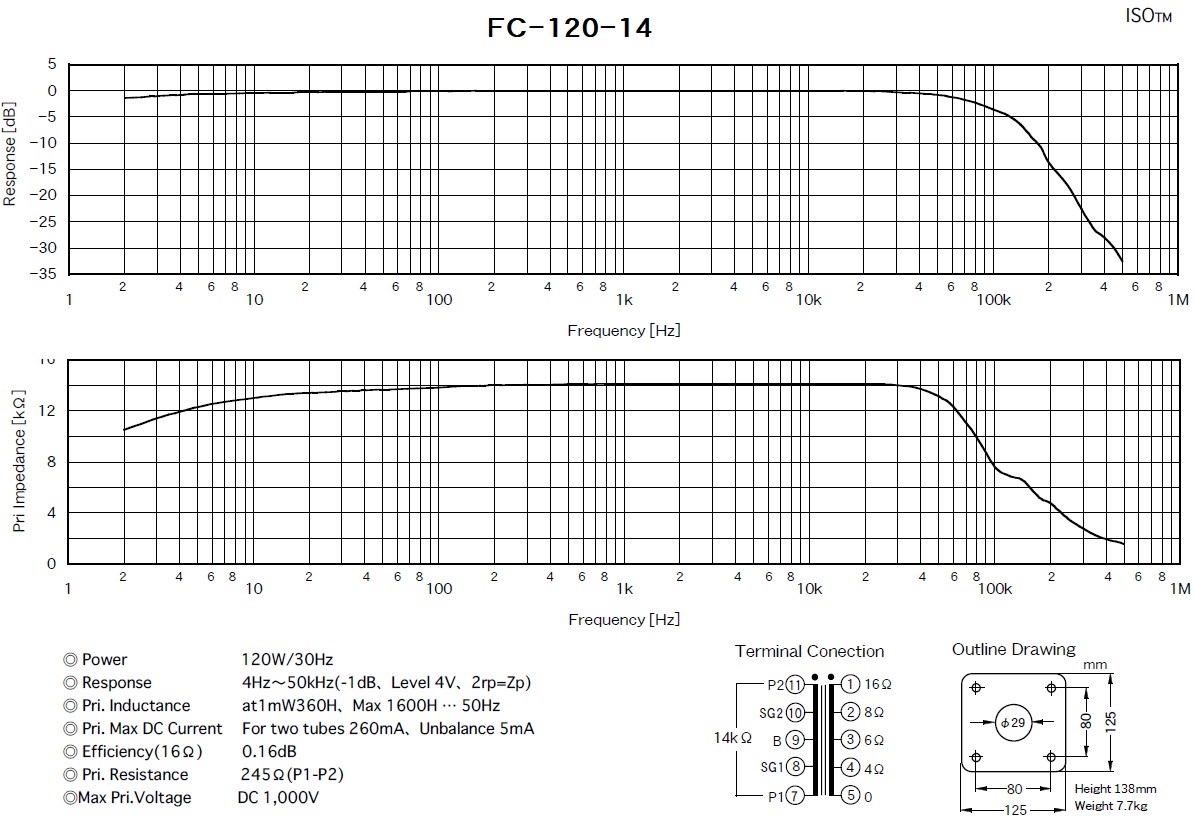

| FC-120-14 | 120W 30Hz |
14k | 4, 6, 8, 16 |
211 | 360-1600 | 5 | 4Hz-55kHz | 125 x 125 x 138 6.4kg |
$665 |
| FC-120-5 | 5k | DA30, 50, 845 | 220-970 | 6 | 4Hz-60kHz | $633 | |||
| FC-120-3.5 | 3k5 | 300B, PX25 | 160-580 | 8 | 4Hz-90kHz | $665 | |||
| FC-120-2.7 | 2k7 | 300B | 120-420 | 12 | 4Hz-100kHz | $665 | |||

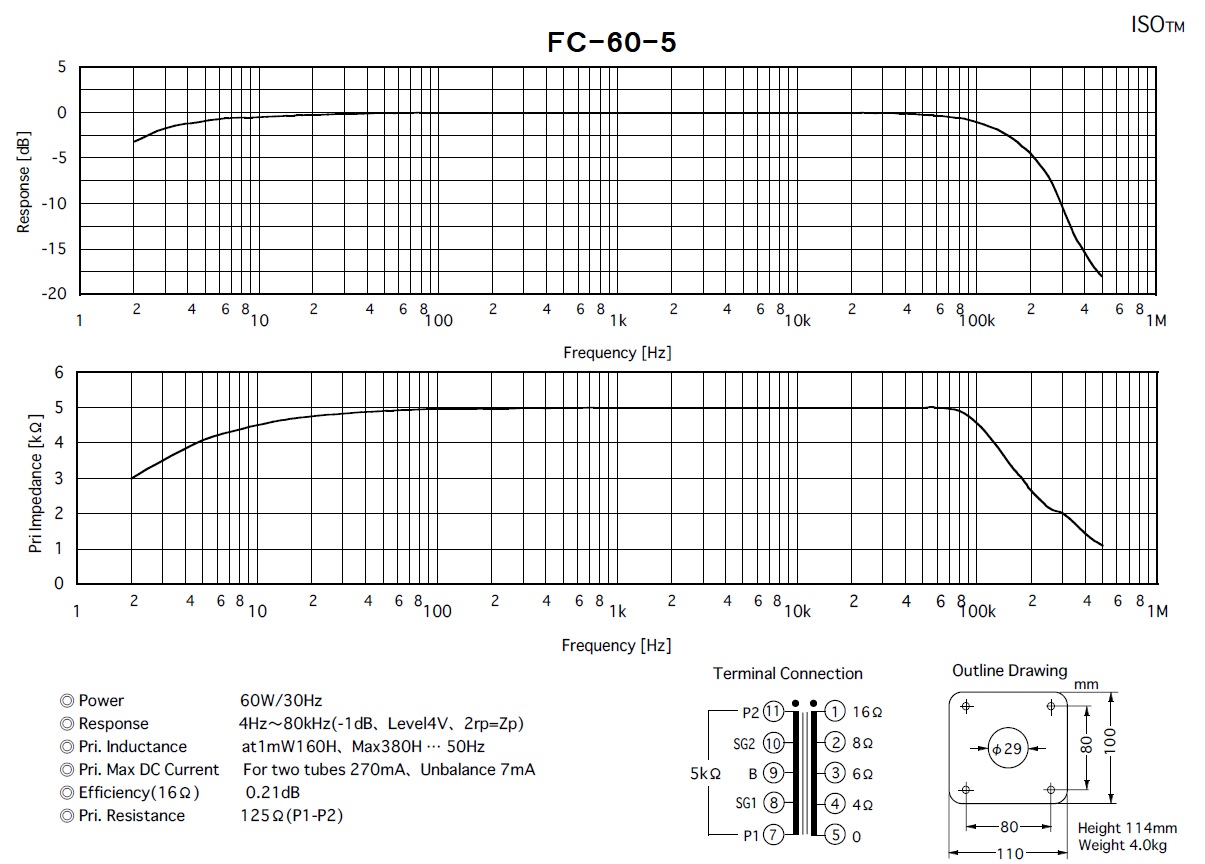

| FC-60-5 | 60W 30Hz |
10k | 4, 6, 8, 16 | 300B, KT66, KT88, EL156 | 160-380 | 7 | 4Hz-80kHz | 110 x 110 x 114 4kg |
$424 |

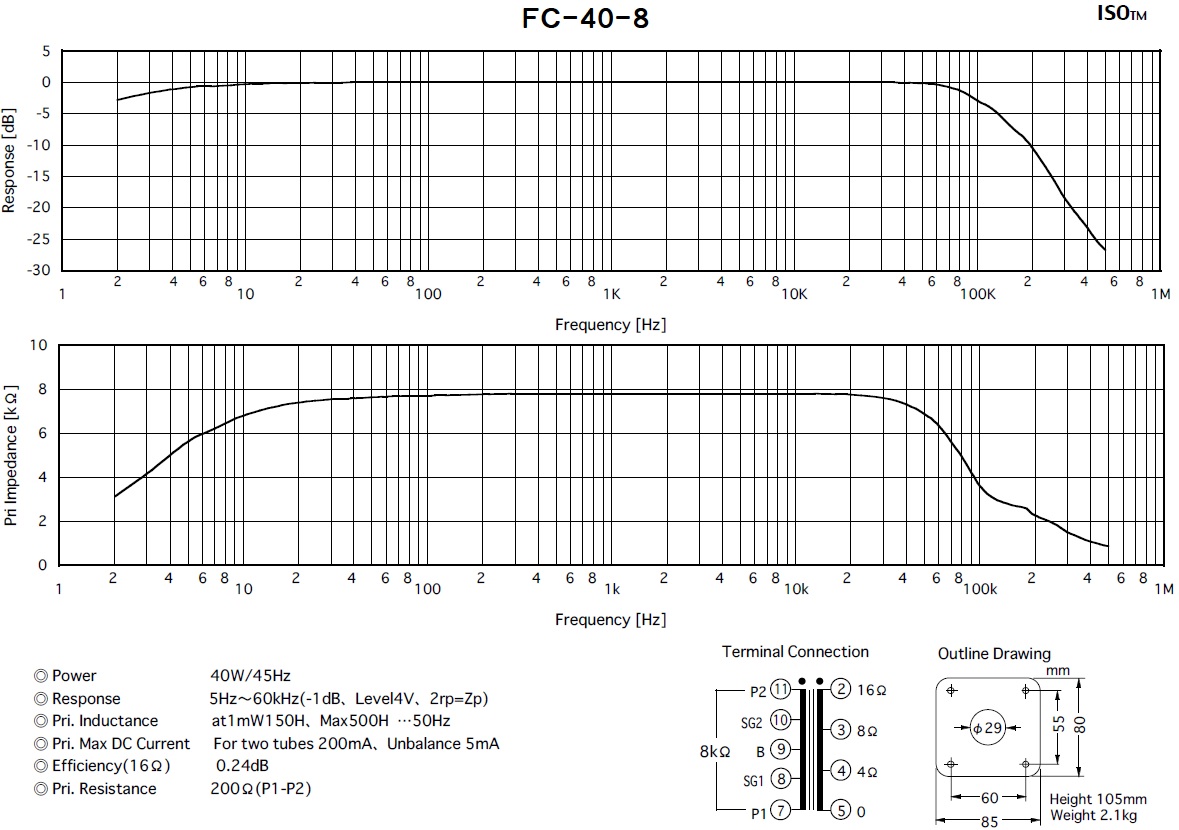

| FC-40-8 | 40W 45Hz |
8k | 4, 8, 16 | 6L6, 7591, 6F6 | 150-500 | 5 | 4Hz-60kHz | 85 x 80 x 105 2.1kg |
$276 |

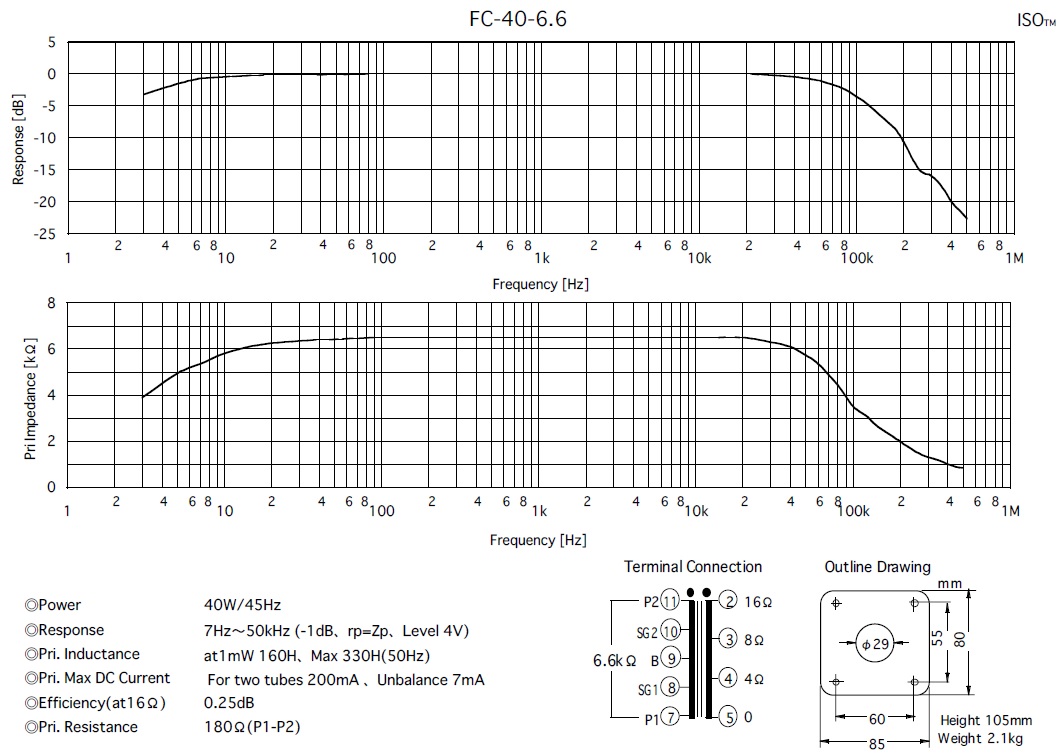

| FC-40-6.6 | 6k6 | KT66, 6L6, EL34, 7591 | 160-330 | 5 | 7Hz-50kHz | $276 | |||
| FC-40-5 | 5k | 2A3, 6B4G, EL34, 6L6 | 150-320 | 5 | 5Hz-80kHz | $276 | |||
| FC-25-8 | 20W | 8k | 6V6, 6BQ5, 71A | 160-350 | 6 | 7Hz-5kHz | 78 x 72 x 95 1.5kg |
$208 | |
| FC-25-5 | 20W | 5k | 45, 6V6, 6CW5 | 100-210 | 7 | 7Hz-80kHz | $208 | ||
